Description
Status (See Notes)
Part Number
Data Sheet
3D Data (step)

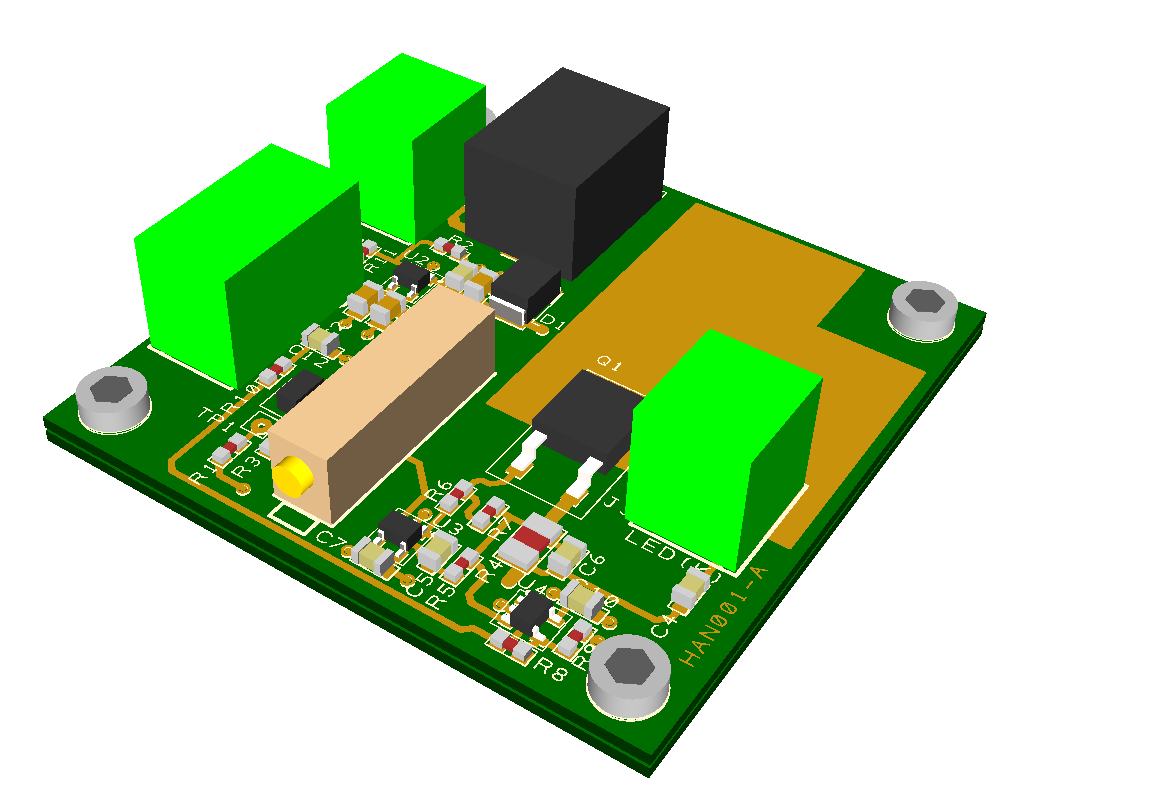

LED Driver PCB renderManual Linear LED driver, 0-500mA
Production
HAN001
LinearLED.pdf
HAN-001.stp
Serial LED Driver PCB renderSerial Controlled Linear LED driver
Development Testing
HAN002
SerialLED.pdf
HAN-002.stp
LED PCB renderPCB for OSRAM Golden Dragon LED - 1" Optical tube
Planned
HAN003

HAN-003.stp
Stepper Driver PCB renderSerial controlled Stepper Driver Production
HAN004
SerialStepper.pdf
HAN-004.stp
FTDI Quad UART PCB renderUSB Quad UART (FTDI FT4232) Production
HAN005

HAN-005.stp
Integrator PCB renderHigh performance Photo Diode Integrator Prototype
HAN006

HAN-006.stp
Serial Controlled Power Supply 0-30V, 0-100mA
Planned
HAN007

Photo Diode Amplifier 5V (Linear Transimpedance) Planned
HAN008

Current Transformer PCB renderCurrent Transformer 1mV/mA Production
HAN009
CurrentTransformer.pdf
HAN-009.stp
Relay Board PCB renderSerial Controlled Relay Board, 8 x 10A SPCO 60V
Planned
HAN010

HAN-010.stp
TIA PCB renderTIA PCB renderVBPW34 Photo Diode Transimpedance Amplifer
Production
HAN011

HAN-011.stp
Ring Light PCB renderRing Light PCB renderLED Ring Light
Production
HAN012

HAN-012.stp

Status Notes:
Stock - Boards are available for immediate shipment from the UK.
Production - Boards are available for 2 week delivery
Development Testing - Boards should be production ready within 4 weeks
Prototype - Boards are expected to be ready for production in 6 to 8 weeks
Planned - Boards are under development but no completion date is available.

3D data is provided for evaluation only and may be subject to change.



For orders and enquiries please use the   Enquiry Form
